POLARIZED ELECTRICAL OUTLET

Cast Brass/Chrome Plated

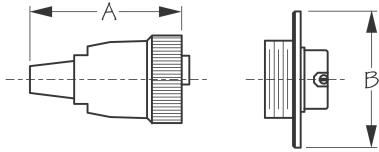

Bulk Display Description A B Amps Fastener Weight Std. Pack Add to List
426142 426142-1 Complete 1-7/16" 1-3/8" 3 #6 RH .13 10 ea
426143 426143-1 Deck Outlet & Cap Only 1-7/16" n/a 3 #6 RH .09 10 ea
426144 426144-1 Plug Only n/a 1-3/8" 3 .03 10 ea
n/a 426149-1 Replacement Cap .01 10 ea

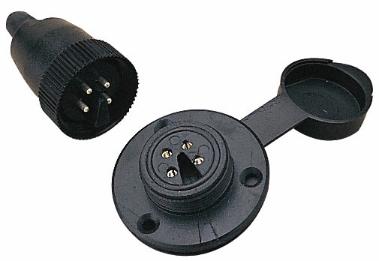

Chrome plated brass polarized electrical outlet includes a rubber gasket and waterproof cap. For use as a 2-conductor deck cable outlet. As a safety feature pins are sized differently ensuring only one way to connect the plug avoiding reverse polarity issues. Installs with two #6 RH fasteners (not included). Rated at 3 amps. 12 or 24VDC.
