STUD MOUNT HANDRAIL

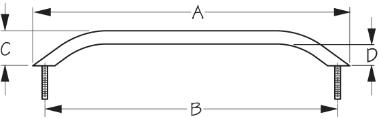

Formed 304 Stainless Steel| Bulk | Display | A | B | C | D | Finish | Tube O.D. | Fastener | Weight | Std. Pack | Add to List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 254106 | 254106-1 | 7-1/4" | 6" | 1-1/2" | 1" | Stainless | 3/4" | 5/16"-18 Nut | .33 | 5 ea | |
| 254112 | 254112-1 | 12" | 10-3/4" | 2" | 1-1/4" | Stainless | 3/4" | 5/16"-18 Nut | .46 | 5 ea | |
| 254118 | 254118-1 | 18-1/2" | 16-3/4" | 2" | 1-1/4" | Stainless | 3/4" | 5/16"-18 Nut | .64 | 5 ea | |
| 254124 | 254124-1 | 24" | 22-1/2" | 2" | 1-1/4" | Stainless | 3/4" | 5/16"-18 Nut | .80 | 5 ea |

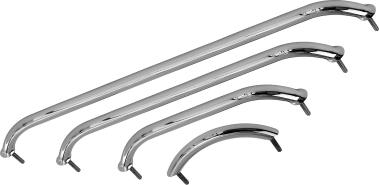

These Stud Mounted Handrails are designed to provide a sleek, smooth handrail transition to the mounting surface of your boat. Functional and attractive, with no visible mounting hardware. Features integral 5/16”-18 x 1-15/16" threaded studs. Constructed of corrosion resistant formed 304 stainless steel. Installs with two 5/16”-18 nuts (not included).
