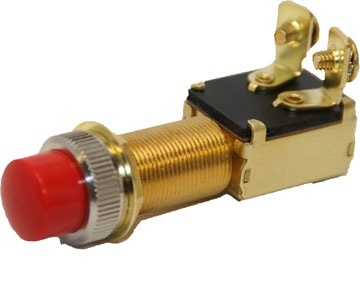

MOMENTARY PUSH BUTTON HORN SWITCH

Stamped Brass

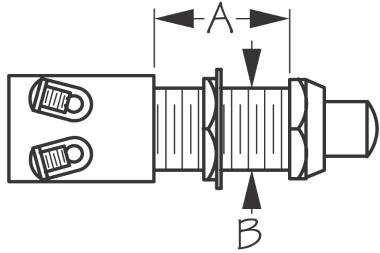

Bulk Display Action A B Cap Color Volts Amps Weight Std. Pack Add to List
420428R 420428R-1 SPST Mom. On-Off 1" 5/8" Red 12 20 .10 10 ea

This Momentary Push Button On-Off Horn Switch is wired with two screw terminals and is designed to be panel mounted in a 5/8" diameter hole. Switch includes a bright red waterproof cap to make it easily identifiable in emergency situations. Maximum panel thickness: 1”. Constructed of stamped brass to withstand harsh marine conditions. 20A @ 12VDC.
