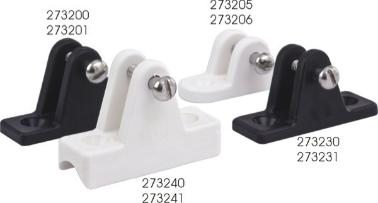

TOP MOUNT HINGE FITTINGS

Injection Molded Nylon
Bulk Display Description Color Base Width Base Length Pin Size Pin/Screw Part # Fastener Weight Std. Pack Add to List
273200 273200-1 Large Deck Hinge Black 13/16" 2-7/16" 3/16" 0P27301 #10 FH .04/.08 10 ea/10 pr
273201 273201-1 Large Deck Hinge White 13/16" 2-7/16" 3/16" 0P27301 #10 FH .04/.08 10 ea/10 pr
273205 273205-1 Small Deck Hinge Black 13/16" 2-3/8" 3/16" 0P27301 #10 FH .03/.06 10 ea/10 pr
273206 273206-1 Small Deck Hinge White 13/16" 2-3/8" 3/16" 0P27301 #10 FH .03/.06 10 ea/10 pr
273230 273230-1 Large Deck Hinge/10° Angled Black 7/8" 2-7/16" 3/16" 0P27301 #10 FH .04/.08 10 ea/10 pr
273231 273231-1 Large Deck Hinge/10° Angled White 7/8" 2-7/16" 3/16" 0P27301 #10 FH .04/.08 10 ea/10 pr
273240 273240-1 7/8" Concave Deck Hinge Black 13/16" 2-7/16" 3/16" 0P27301 #10 FH .06/.12 10 ea/10 pr
273241 273241-1 7/8" Concave Deck Hinge White 13/16" 2-7/16" 3/16" 0P27301 #10 FH .06/.12 10 ea/10 pr

Deck Hinges are designed to mount horizontally and attach an eye end secured to tubing in Bimini top applications. Concave Hinges are designed to rail mount on 7/8” tubing. Angled Hinges are used for mounting items on slanted surfaces like sloped gunwales. 3/16” pin size. Constructed of UV resistant injection molded nylon. Installs with two #10 FH fasteners (not included). Available in black or white.
