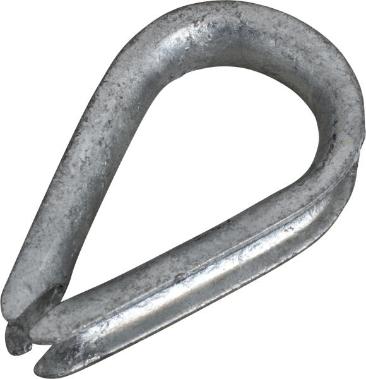

LIGHT DUTY THIMBLE

Stamped Steel Hot Dipped Galvanized

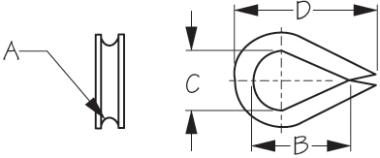

Bulk Display A (Wire Dia.) B C D Weight Std. Pack Add to List
172003 172003-1 1/8" 1-7/16" 11/16" 2" .03/.06 20 ea/10 pr
172005 172005-1 3/16" 1-3/8" 11/16" 1-15/16" .03/.06 20 ea/10 pr
172006 172006-1 1/4" 1-3/8" 11/16" 1-15/16" .03/.06 20 ea/10 pr
172008 172008-1 5/16" 1-9/16" 13/16" 2-1/8" .07/.14 20 ea/10 pr
172010 172010-1 3/8" 1-3/4" 7/8" 2-1/2" .11/.22 10 ea/10 pr
172012 172012-1 1/2" 1-7/8" 1-1/8" 2-3/4" .16/.32 10 ea/10 pr
172016 172016-1 5/8" 2-3/8" 1-3/8" 3-1/2" .34 10 ea
172019 172019-1 3/4" 2-5/8" 1-5/8" 3-3/4" .51 10 ea
172022 n/a 7/8" 4-1/8" 2-7/16" 5-5/8" .74 5 ea
172026 n/a 1" 4-1/4" 2-7/16" 5-5/8" .86 5 ea

Used to protect wire or rope from contacting with the load it is hoisting, thimbles keep the eye splice from being crushed while reducing chafe and abrasion. Constructed of hot dipped galvanized stamped steel these thimbles are ideal for anchor and mooring lines.
