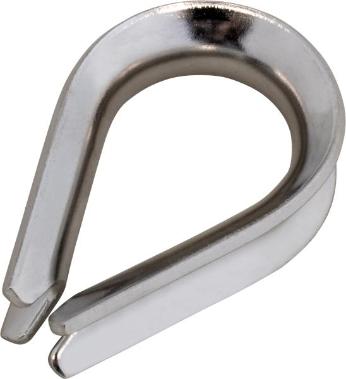

HEAVY DUTY THIMBLE

Stamped 304 Stainless

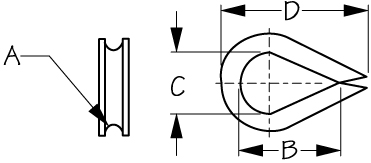

Bulk Display A (Wire Dia.) B C D Weight Std. Pack Add to List
170002 170002-1 1/16"-3/32" 21/32" 3/8" 7/8" .01/.02 100 ea/10 pr
170003 170003-1 1/8" 11/16" 3/8" 1" .01/.02 100 ea/10 pr
170004 n/a 5/32" 13/16" 7/16" 1-1/8" .01 100 ea
170005 170005-1 3/16"-7/32" 15/16" 1/2" 1-1/4" .02/.04 100 ea/10 pr
170006 170006-1 1/4" 1-1/16" 19/32" 1-1/2" .03/.06 100 ea/10 pr
170008 170008-1 5/16" 1-1/2" 7/8" 2" .06 50 ea/10 ea
170009 170009-1 3/8" 1-3/4" 15/16" 2-5/16" .08 25 ea/10 ea
170010 170010-1 7/16" 1-7/8" 1-1/16" 2-9/16" .12 20 ea/10 ea
170012 170012-1 1/2" 2-1/8" 1-1/8" 2-13/16" .14 20 ea/10 ea
170014 n/a 9/16" 2-1/4" 1-1/4" 3-1/16" .22 10 ea
170016 170016-1 5/8" 2-5/8" 1-9/16" 3-7/16" .29 10 ea
170020 170020-1 3/4" 3-7/16" 2" 4-1/4" .63 10 ea
170022 n/a 7/8" 3-3/4" 2-3/16" 5" .82 10 ea
170026 n/a 1" 4-1/2" 2-1/2" 5-15/16" 1.48 5 ea
170028 n/a 1-1/8" 5-1/4" 3" 6-13/16" 1.67 5 ea
170032 n/a 1-1/4" 5-1/8" 3-1/8" 8-1/16" 2.29 5 ea

Used to protect wire or rope from contacting with the load it is hoisting, thimbles keep the eye splice from being crushed while reducing chafe and abrasion. Constructed of corrosion resistant stamped 304 stainless steel these heavy-duty thimbles are ideal for life lines and running rigging.
